ams OSRAM extends its Oslon Optimal family

ams OSRAM has extended its OSLON® Optimal family of horticultural lighting LEDs with a new 640 nm Red LED.

Providing broader coverage of the red portion of the spectrum, the new 640 nm Red LED joins the 660 nm Hyper Red and 730 nm Far Red in the OSLON Optimal family, which also includes a 450 nm Deep Blue LED and a horti white LED.

It has been common practice in horticulture to illuminate crops with a mix of 660 nm, 450 nm, and 730 nm, or 660 nm and white LEDs for plants that require full-spectrum light. Initial research conducted by Wageningen University on behalf of ams OSRAM shows that a double red peak (640 nm and 660 nm) in combination with horti white increases the dried biomass level in indoor growing environments.
In addition, the use of the OSLON Optimal Red helps prevent photobleaching in some plant varieties. Experience shows that it can also prevent the incidence of fungal and bacterial infection in leafy greens such as basil.

The new OSLON Optimal Red product can play an important part in raising energy efficiency and reducing the cost of electric power in all horticultural lighting applications, including greenhouse top lighting and inter lighting, and vertical farming. Producing 3.53 µmol/J, it achieves a very high wall plug efficiency of 66.3 %. The LED’s radiant flux is 485 mW, and photon flux is 2.58 µmol/s. The peak wavelength is 640 nm, and the dominant wavelength is 630 nm.

Thomas Grebner, Marketing Manager at ams OSRAM, said: ‘The discovery of new recipes that include a double red peak of Hyper Red and Red is helping growers produce more biomass and maintain superior plant health. With the introduction of the OSLON Optimal Red LED, horticultural lighting equipment manufacturers can achieve very high levels of efficiency and reliability.’

Robust ceramic package for high reliability

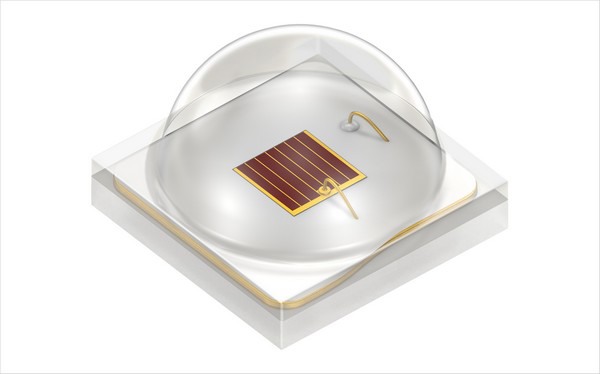

The OSLON Optimal LEDs are high-power ceramic packages based on a 1 mm² die and a standard 3030 footprint with a Lambertian emission profile. The OSLON Optimal portfolio of products, based on the latest ams OSRAM 1 mm2 chip technology, provides a very stable light output over a wide temperature range, as well as very low thermal resistance and a long lifetime.

The new Red product is suitable for horticultural purposes as well as for use in general lighting applications such as architainment and signal lighting.

For more information:
Osram
www.ams-osram.com
